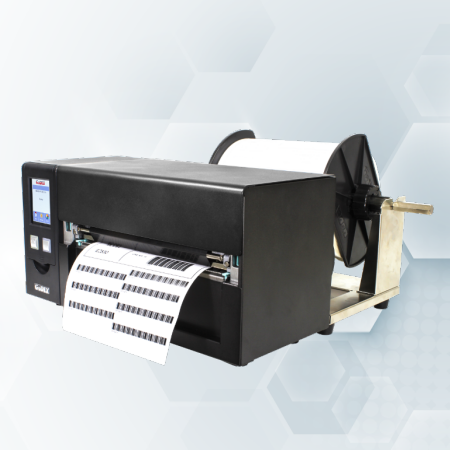

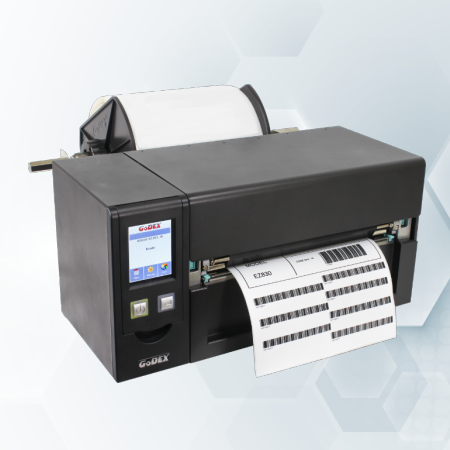

GoDEX HD820i and HD830i Wide Format Printers

8.5" (216mm) print width onto labels up to 10" (254mm) wide

200 and 300dpi resolution models

Thermal and thermal transfer print modes

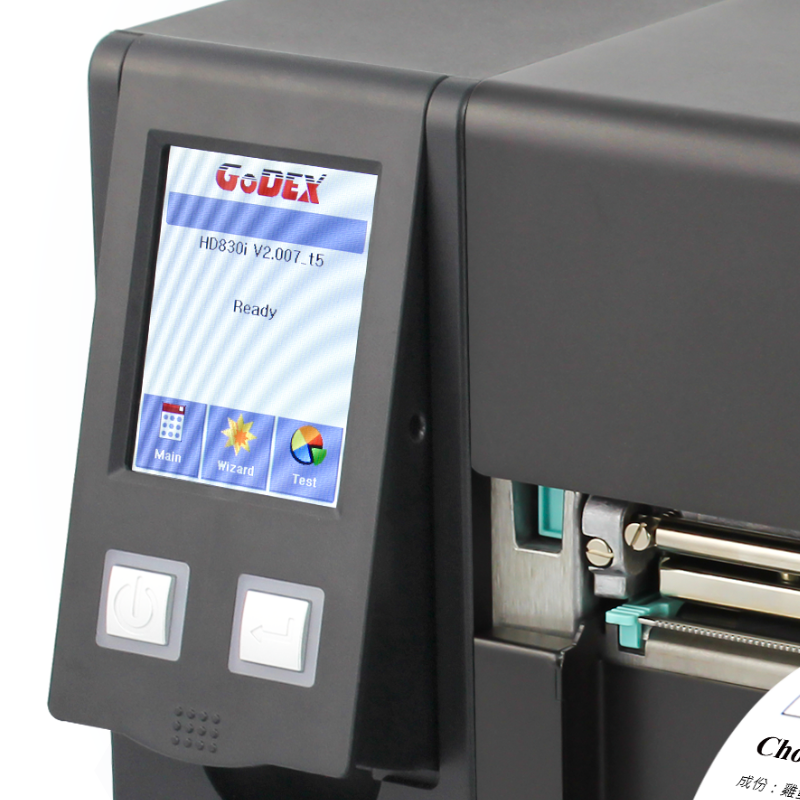

Colour screen and navigation keys for print monitoring, adjusting settings and stand-alone mode without a PC connected

Printing speed up to 6"/sec (152)mm/sec

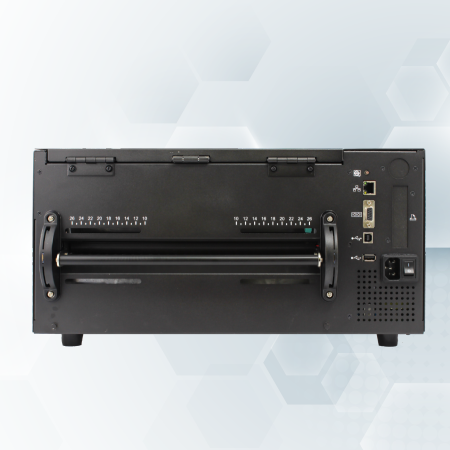

USB, Ethernet and serial interfaces as standard

USB host port for additional memory or external keyboard in stand-alone mode

Optional WiFi, Bluetooth and parallel interfaces

Accessories include cutter, individual sheet feeder and label rewinders

5 year warranty

Free GoLabel software

Call us on 01543 502202 to discuss your requirements

Specification

HD820i HD830i
Print method: Thermal transfer / thermal Thermal transfer / thermal
Resolution: 200dpi (8 dots/mm) 300dpi (12 dots/mm)
Display: 3.2" colour touch screen 3.2" colour touch screen
Print width: 216mm 219mm
Max. print speed: 6"/sec (152mm/sec) 4"/sec (102mm/sec)
Max. print length: 2200mm 1016mm
Min. print length: 25mm 25mm
Max. media caliper: 250 microns 250 microns
Media width: 25 to 118mm 25 to 118mm
Media roll diameter: 250mm 250mm
Media core: 38 to 76mm 38 to 76mm
Max. ribbon length: 300mm 300mm
Standard interfaces: USB, serial and Ethernet USB, serial and Ethernet
USB host ports: 1 1
Optional interfaces: Bluetooth, WiFi, parallel Bluetooth, WiFi, parallel
Dimensions WxLxH: 431 x 221 x 224mm 431 x 221 x 224mm
Weight: 11.7Kg 11.7Kg
Opetating temp: +5 to +40°C +5 to +40°C
Electrical supply: 100-240Vac @ 50-60Hz 100-240Vac @ 50-60Hz
godex software.html

Free GoLabel software

All GoDEX printers come with free GoLabel software including database integration.

Find out more

NiceLabel software

For advanced label printing requirements and comprehensive print management facilities.

Get you free trial
